Solar systems have become an essential part of caravanning and camping
Description

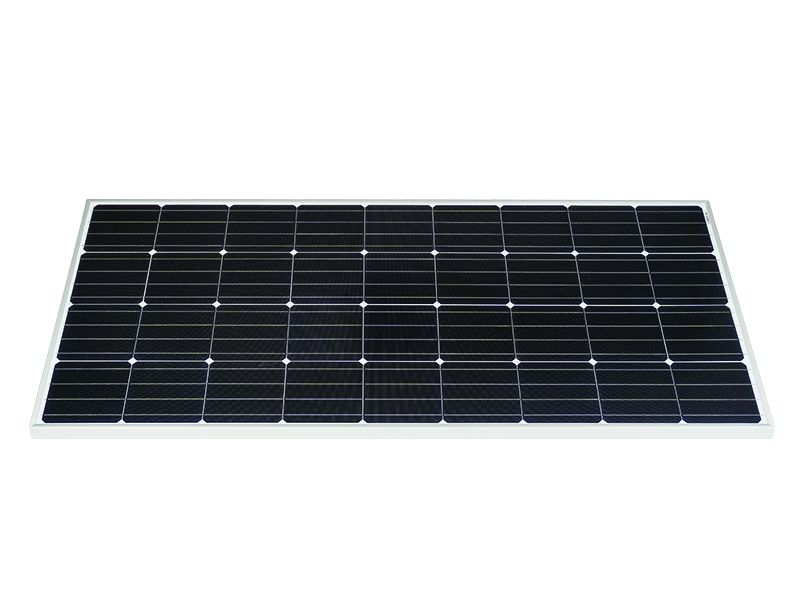

CAMEC 170W mono-crystalline solar panel use solar cells which are manufactured using the latest manufacturing techniques and highest grade of mono-crystalline.Each solar cell has a SIN surfaceanti-reflective coating which provides a uniform blue colour and helps to absorb more light under all weather conditions.Together with Black Surface Field (BSF) structure, the solar cell shows superior conversion efficiency.
FEATURES
- Bypass diode to minimise power drop caused by shade
- Anti-reflective high transparency tempered glass
- Solar cell embedded in EVA
- Tedlar foil backing
SPECIFICATIONS
- Size of solar cell: 156x156mm
- Max Power Ouput (pm): 170 Watt
- Output Tolerance: +5%
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Voltage (lsc): 10.09A
- Working current (lpm): 9.44A
- Working voltage (Vpm): 18V
- Type of output terminal: MC4 Compatible
- Testing Conditions: AM11.5, 1,000W/m2, 25C
- Weight: 12.5kg
Contact Us
File Name | Part No. | Download |
---|---|---|
Weight | 12.5kg | |
Power | 170 Watt | |
Dimensions | 1460 L x 664 W x 35mm H | |
Warranty | 12 months | |
