Camec Aliminium / Steel Single Electric Step

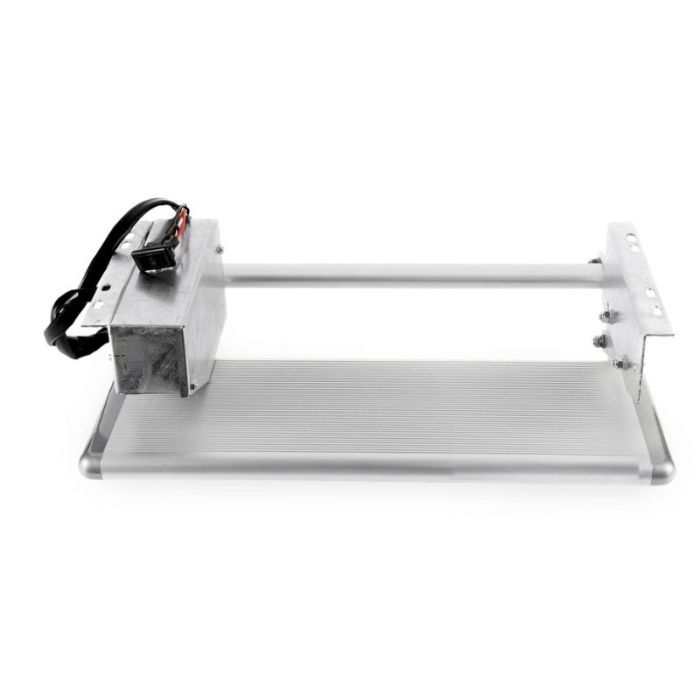

The Camec electric step is a fantastic addition to your caravan or motorhome. These steps have an aluminium tread and the frame is constructed from galvanised steel. They have a 12V motor that extends and stores the step which is operated by a switch that is placed just inside the doorway.The mounting bracket can be bolted or welded to the chassis and are 554mm from outside to outside.

Features:

• 560mm wide electric step
• Operated by a switch

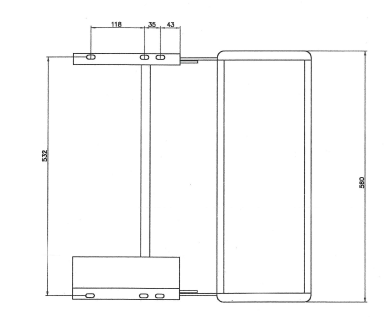

• Dimensions of step tread: 560mm x 210mm
• Weight: 5.6kg

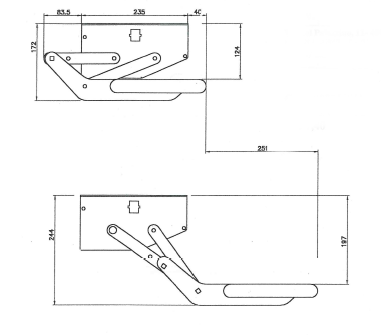

• Clearance required: 170mm deep when closed
• Closed step is 50mm proud of mounting flange and open step is 300mm proud of mounting flange
• Open step tread is 190mm below mounting flange
• Motor is located on the right side
