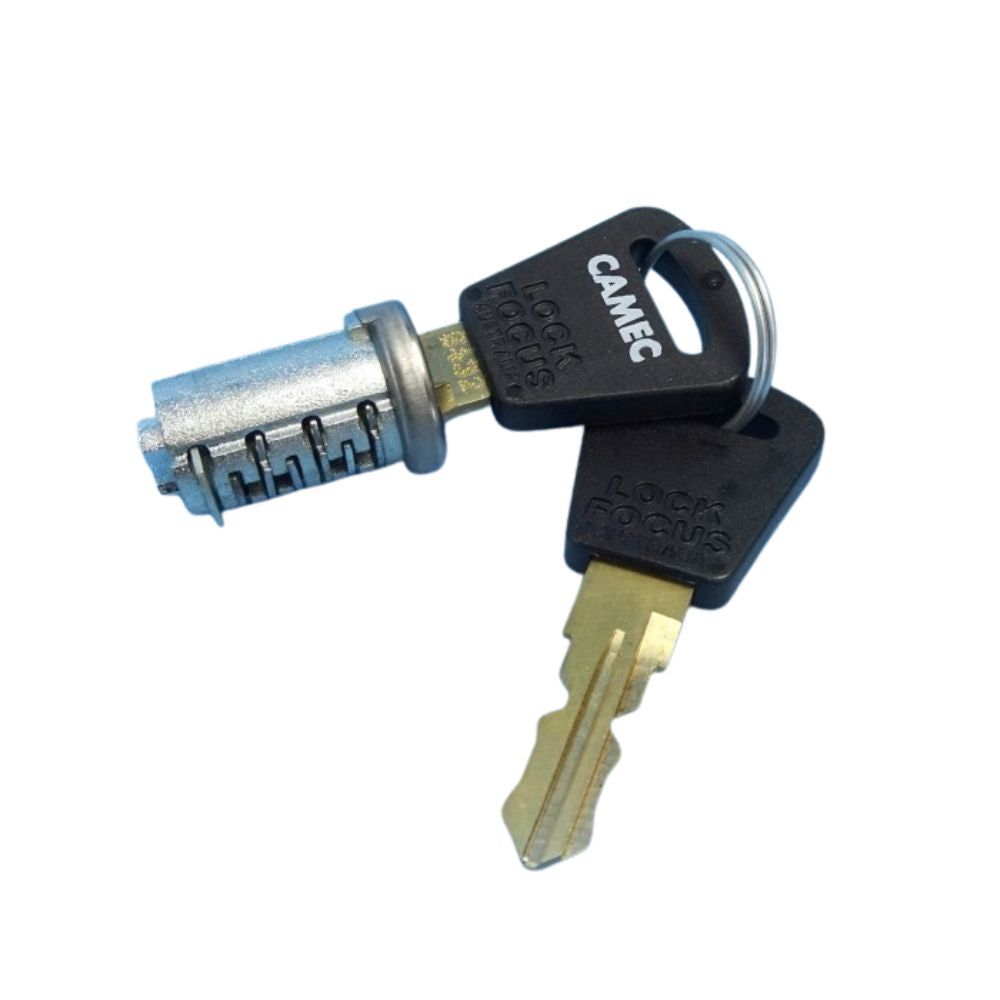

Camec 3 Point Lock Barrel & Key

The Camec 3 Point Lock Barrel & Key is a replacement barrel designed for Camec 3 Point door locks. It is also compatible with the Camec One-Key system, making it a convenient replacement for worn or damaged lock barrels.

Removing the lock barrel:

• After removing lock assembly from the door, hold the handle open and turn and pull the rear metal lock activator (cylinder).
• To remove the key barrel, working from the rear, depress the small metal wafer into the lock while the lock is rotated so the square protrusions on the lock line up with the gaps in the housing. The lock should now slide out the front.

Adding the lock barrel:

• Place the key in the lock and turn so the square protrusions on the lock line up with the gaps in the housing. Place the barrel at an angle so the wafer enters the housing first and depresses itself while the remainder of the lock to pushed in.
• The wafer should pop out to secure the lock in place.
• These are for CAMEC 3 point door locks. We can not guarantee they will fit other locks.
