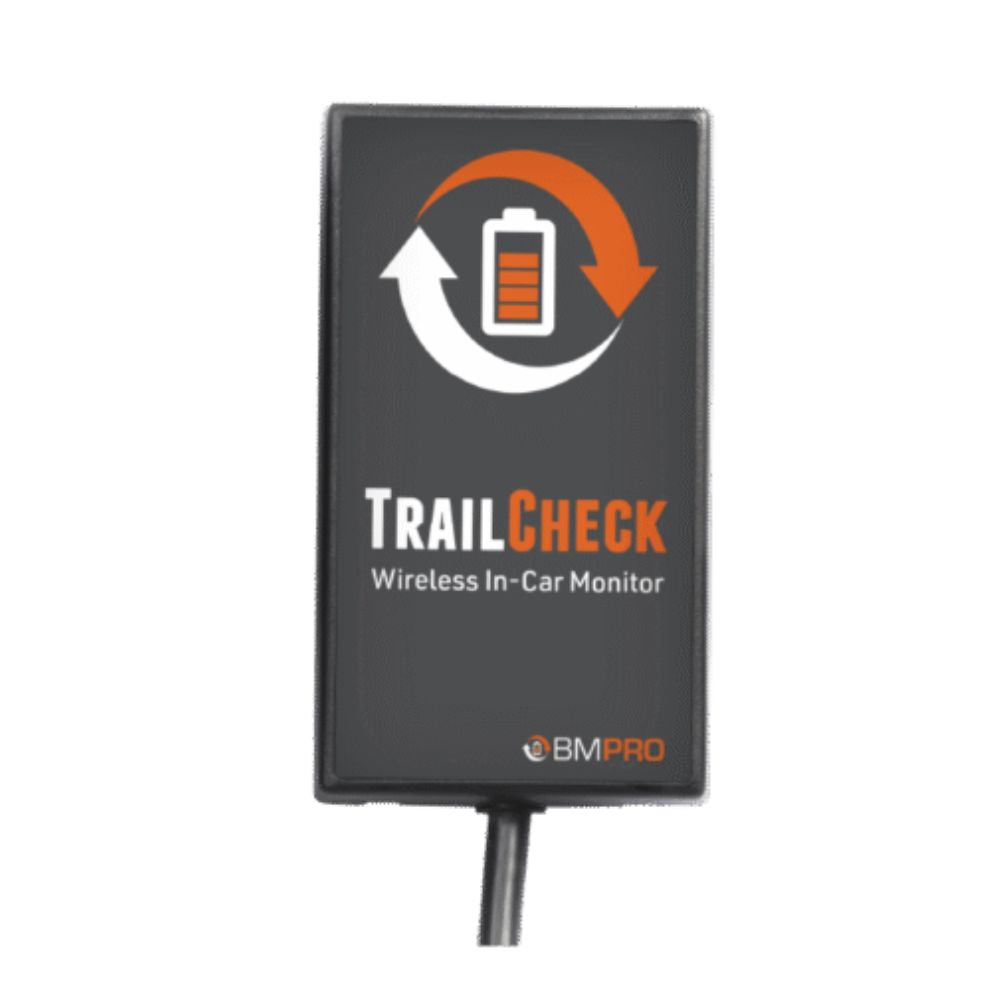

BMPRO Trailcheck - Trailer Battery Monitor System

TrailCheck is an additional remote trailer battery monitor system in the tow vehicle. Use it with TrailSafe break-away safety system. As a wireless solution, TrailCheck communicates with TrailSafe via Bluetooth.

NSW has the extra-legal requirement to have a remote battery monitor onboard. The driver should be able to see or hear it, and it also should indicate that the breakaway system has a charged battery. Is your caravan registered in NSW? Don’t go camping without an onboard monitor TrailCheck!

The TrailCheck will indicate system status with blue, green, orange or red LED indicators. For example, the green light indicates the battery is charged enough for over 15 minutes of operation – and that’s what you need in case of emergency.

Mount TrailCheck with the provided velcro strips so that it is visible to the driver, for example, under the dash, and plug it into a 15A (or lower) fused vehicle 12VDC Outlet or Cigarette lighter. Then pair it with the TrailSafe and test it. You are now safe to tow your caravan.

Features:

• Bluetooth connectivity
• LED status indicators for full system safety check.
• When paired with BMPRO’sTrailSafe+ and Sway Control, theTow Control network, form an integrated towing safety system

Specifications:

Communications: Bluetooth Low Energy
Operational Voltage: 8-16V
Operational Temperature - 0-50 degress C
Dimensions: 92 x 52 x 25mm
