BMPRO  |  SKU: 054455
24% off

BMPRO Aspero Power Management & Display

Sale price $719.99 Regular price $949.00
Tax included Shipping calculated at checkout.

Pickup currently unavailable at Campbellfield

Description

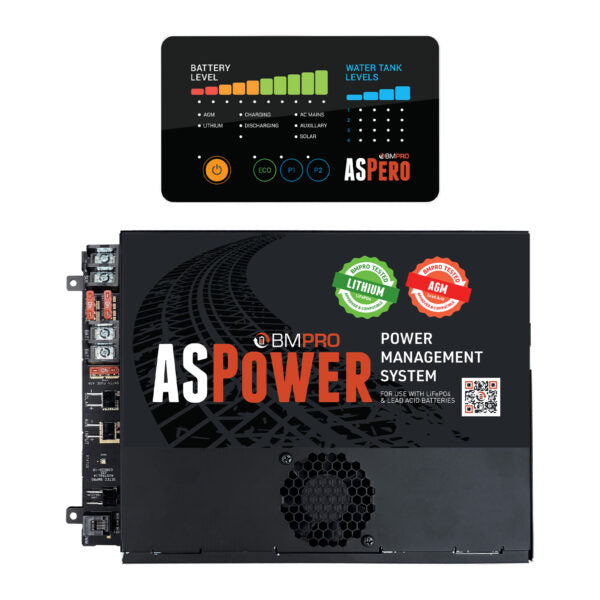

The BMPRO Aspero Power Management System combines intelligent battery charging, power distribution and monitoring in one convenient solution for caravans, motorhomes and RVs. Designed to manage power from AC mains, solar panels and vehicle auxiliary power, it efficiently charges your battery while supplying power to connected appliances.

Featuring the lithium-compatible ASPower unit and ASDisplay monitoring screen, the system provides real-time information on battery status, charging activity, power sources and water tank levels. Intelligent charging technology helps maintain battery health, while automatic battery preservation mode conserves remaining power when charging is unavailable.

Features:

  • Complete RV power management and monitoring system
  • ASPower charging unit with ASDisplay monitoring screen
  • Real-time battery status and water tank level monitoring
  • Multi-input charging from AC mains, solar and vehicle power
  • Compatible with multiple RV battery types, including lithium
  • Intelligent charging for improved battery health
  • Automatic battery preservation mode
  • Displays active power sources and charging status

Specifications

Main Unit

Input Voltage Range
230V - 240V, 50Hz
Input Surge
<40A (Cold Start)
Output Current (Load + Battery Current)
35A
Factory Set Voltage (Float Voltage)
13.65V ± 0.1V
Output Ripple Voltage
<150mV
Overvoltage Protection
<18V
Overcurrent Protection (Load + Battery Current)
35A - 38A
Battery Current Limit
30A
Low Voltage Disconnect (Lead-Acid)
10.5V ± 0.2V
Low Voltage Disconnect (LiFePO4)
11.5V ± 0.2V
Battery Drain (When in Storage Mode)
<8mA
AC/DC Efficiency
>83%
Cooling Fan
Thermally Controlled
Solar Input Current
<27A
Solar Input Voltage
15V - 25V
Ambient Temperature
0°C to 50°C
Communication
CAN Bus
Dimensions
284 x 206 x 68mm
Weight
2kg
Standards - Safety
AS/NZS 60335.1, AS/NZS 60335.2.29
EMC
AS/NZS CISPR 32
Approvals
RCM

ASDisplay

Input Voltage Range
10V - 16V
Operating Temperature
10°C to 50°C
Storage Temperature
-10°C to 70°C
Humidity
90% Non-Condensing
Battery Drain (When Inactive)
<15mA
Dimensions
150.4 x 90.4 x 15mm
