    BMPRO-Px Shunt 500amp Wired
    $216.00 $270.00
    You Save 20%

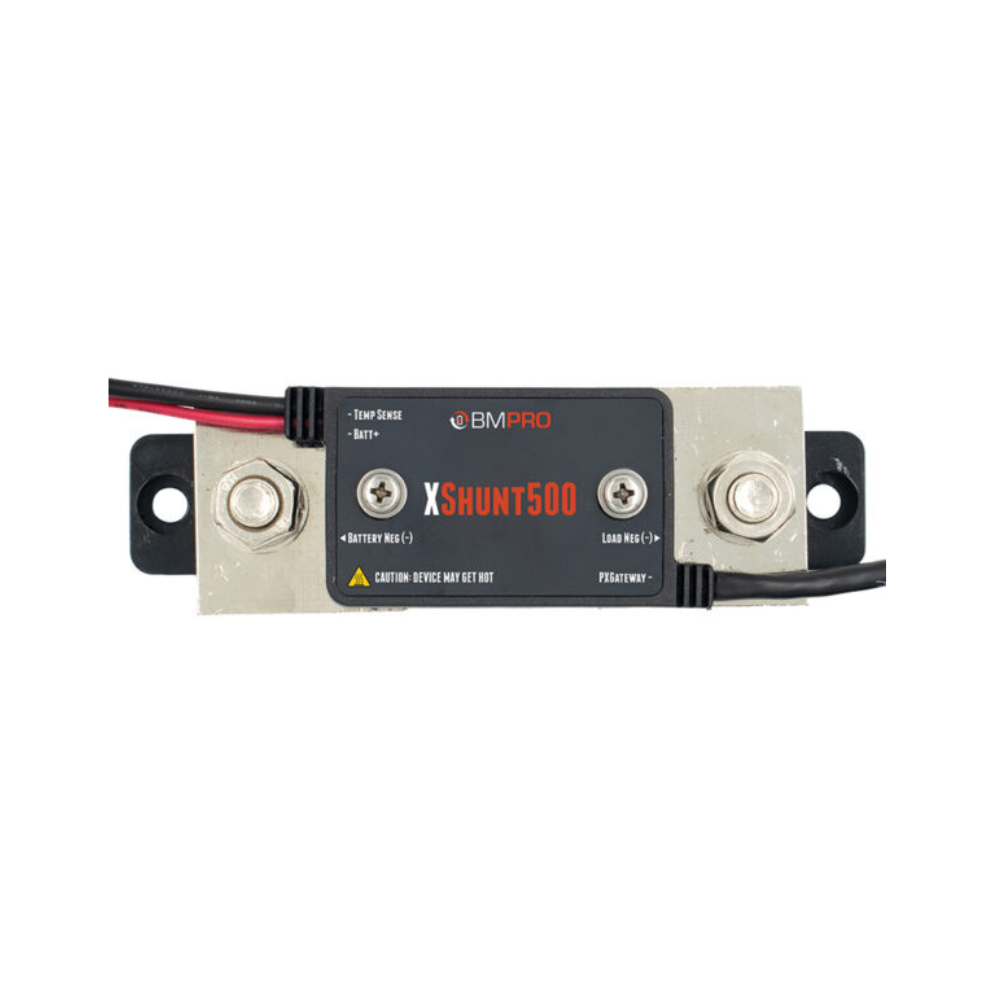

    BMPro XShunt500 electronic component on a white background

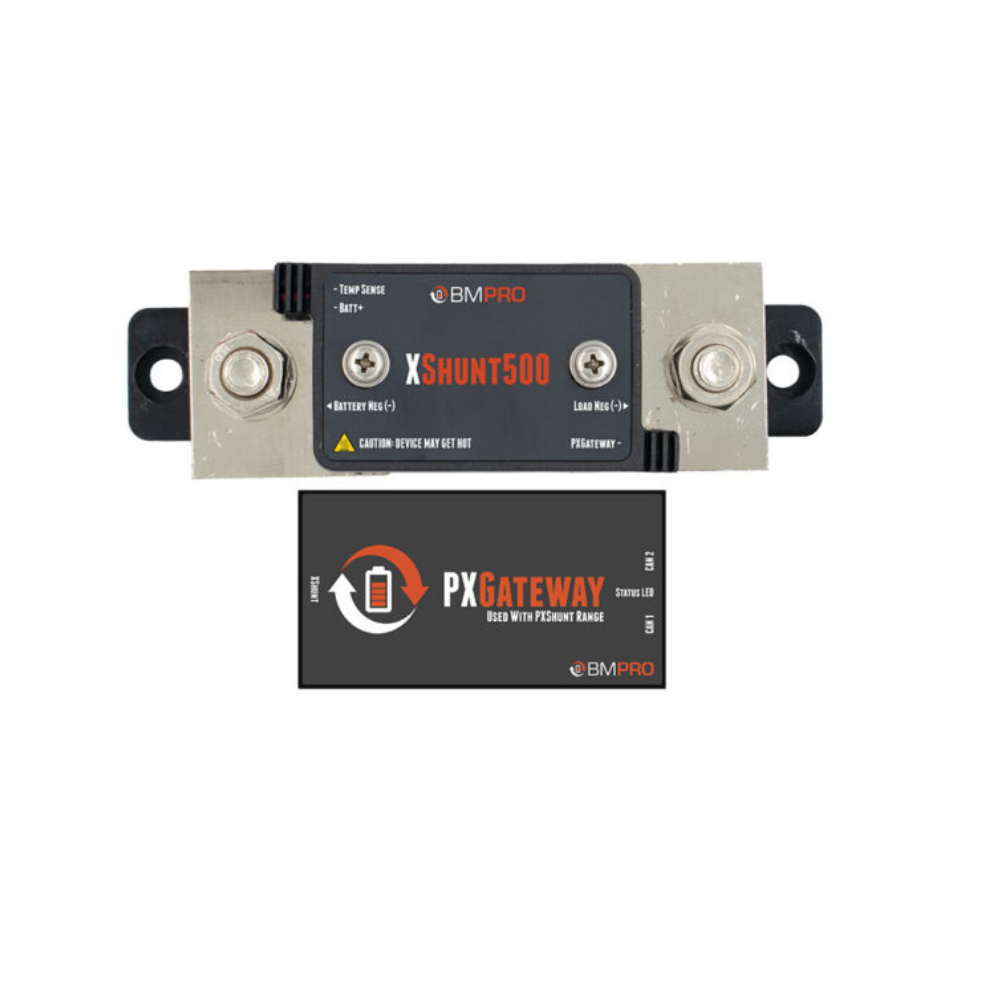

    Two electronic components with 'PX Gateway' and 'Shunt500' labels on a white background

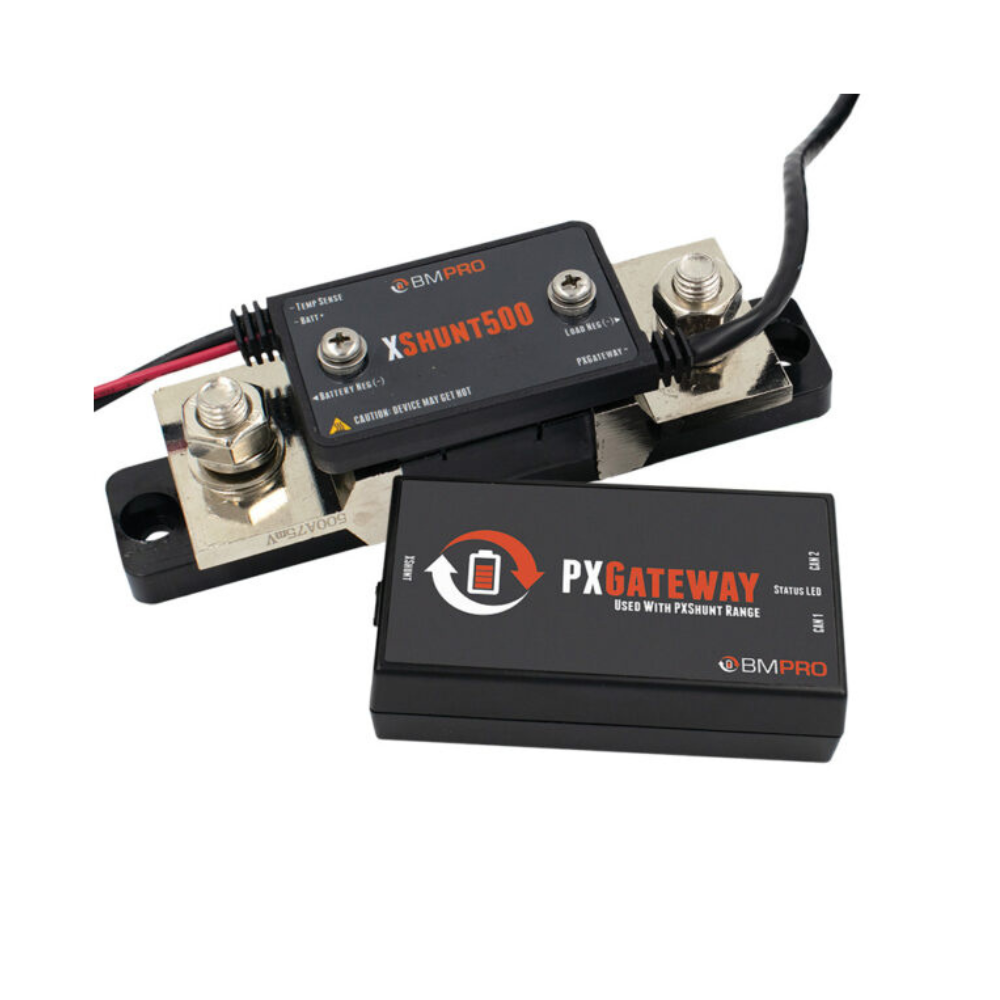

    Two electronic components with 'BMPRO' branding on a white background

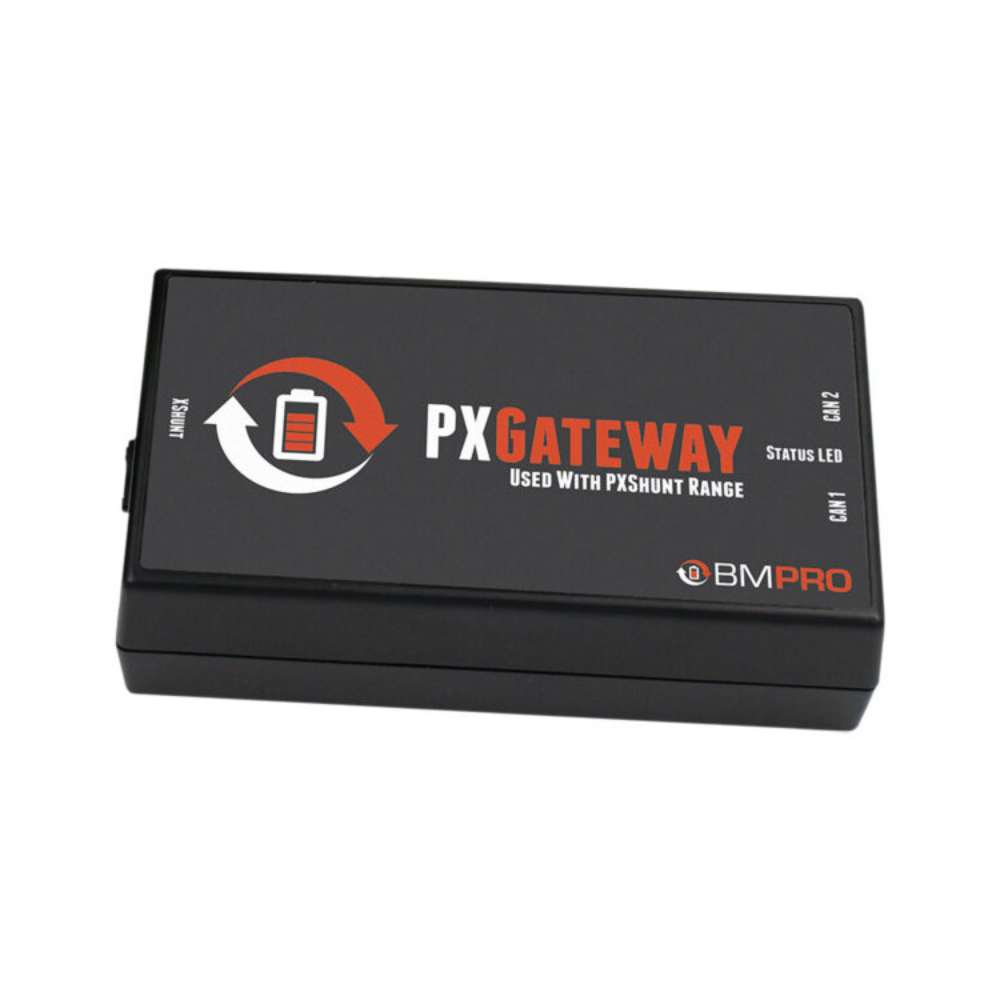

    PX Gateway device with BM Pro branding on a white background
    You Save 20%
    BMPro XShunt500 electronic component on a white background
    Two electronic components with 'PX Gateway' and 'Shunt500' labels on a white background
    Two electronic components with 'BMPRO' branding on a white background
    PX Gateway device with BM Pro branding on a white background
    BMPro XShunt500 electronic component on a white background
    Two electronic components with 'PX Gateway' and 'Shunt500' labels on a white background
    Two electronic components with 'BMPRO' branding on a white background
    PX Gateway device with BM Pro branding on a white background

    BMPRO PX Shunt 500 External Battery Shunt

    Price
    $216.00    $270.00
    PART NO - 054475
    Allows high current loads to be directly connected to the battery While maintaining accurate State of Charge and Time Remaining measurements
    Monitors battery properties Voltage charging/discharging current, energy usage (Ah), temperature
    Supports 12V batteries up to 1200Ah
    Compatible with various BMPRO systems BatteryPlus35, ASPero, J35
    • This product is available
    {"id":50306488140074,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"054475","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BMPRO-Px Shunt 500amp Wired","public_title":null,"options":["Default Title"],"price":21600,"weight":0,"compare_at_price":27000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}
    {"id":50306488140074,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"054475","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BMPRO-Px Shunt 500amp Wired","public_title":null,"options":["Default Title"],"price":21600,"weight":0,"compare_at_price":27000,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

    Description

    Enhance your battery monitoring with the BMPRO PXShunt500. Designed for high-current systems, it delivers accurate real-time data on battery usage, charge levels and performance.

    Contact Us

    The BMPRO PXShunt500 is a high-performance external battery shunt designed to provide precise monitoring for advanced caravan and RV power systems. Built for high-current applications, this wired solution allows you to connect heavy loads directly to your battery while maintaining accurate tracking of your system’s performance.

    Engineered for reliability, the PXShunt500 measures critical battery data including voltage, charging and discharging current, energy usage (Ah), and temperature. This ensures your BMPRO power management system can deliver accurate readings for state of charge and time remaining, even when multiple high-demand devices are connected.

    The system consists of two components—the XShunt500 and PXGateway—which are hardwired into your setup for stable, consistent data transmission. Communication via CAN bus ensures reliable integration with compatible BMPRO systems such as BatteryPlus35, ASPero and J35, making it an essential upgrade for serious off-grid or touring setups.

    With a 500A continuous current rating and support for 12V batteries up to 1200Ah, the PXShunt500 is built to handle demanding electrical loads. Its IP67-rated housing allows for external mounting, providing durability in harsh outdoor environments.

    Whether you’re running inverters, solar inputs or additional 12V accessories, the PXShunt500 ensures your system maintains accurate and dependable battery data at all times.

    FEATURES

    • High-current battery monitoring for caravans and RV systems
    • 500A continuous current rating for demanding loads
    • Suitable for 12V battery systems up to 1200Ah
    • Measures voltage, current, energy usage (Ah) and temperature
    • Maintains accurate state of charge and time remaining calculations
    • Hardwired system with CAN bus communication for reliable data transfer
    • Durable IP67-rated shunt for external mounting
    • Compatible with lead acid and LiFePO4 batteries
    • Easy installation with LED status indicators

    SPECIFICATIONS

    • Current Rating: 500A continuous
    • Battery Voltage: 12V systems
    • Battery Capacity: Up to 1200Ah
    • Voltage Range: 8–16V
    • Temperature Range: –10°C to 50°C
    • Communication: CAN bus
    • Components: XShunt500 and PXGateway
    • Protection Rating: IP67 (shunt unit)
