Aussie Traveller  |  SKU: 05100070001080
Sold out

Rear View Round Camera Kit - Black

Regular price $299.99
Tax included Shipping calculated at checkout.

Description

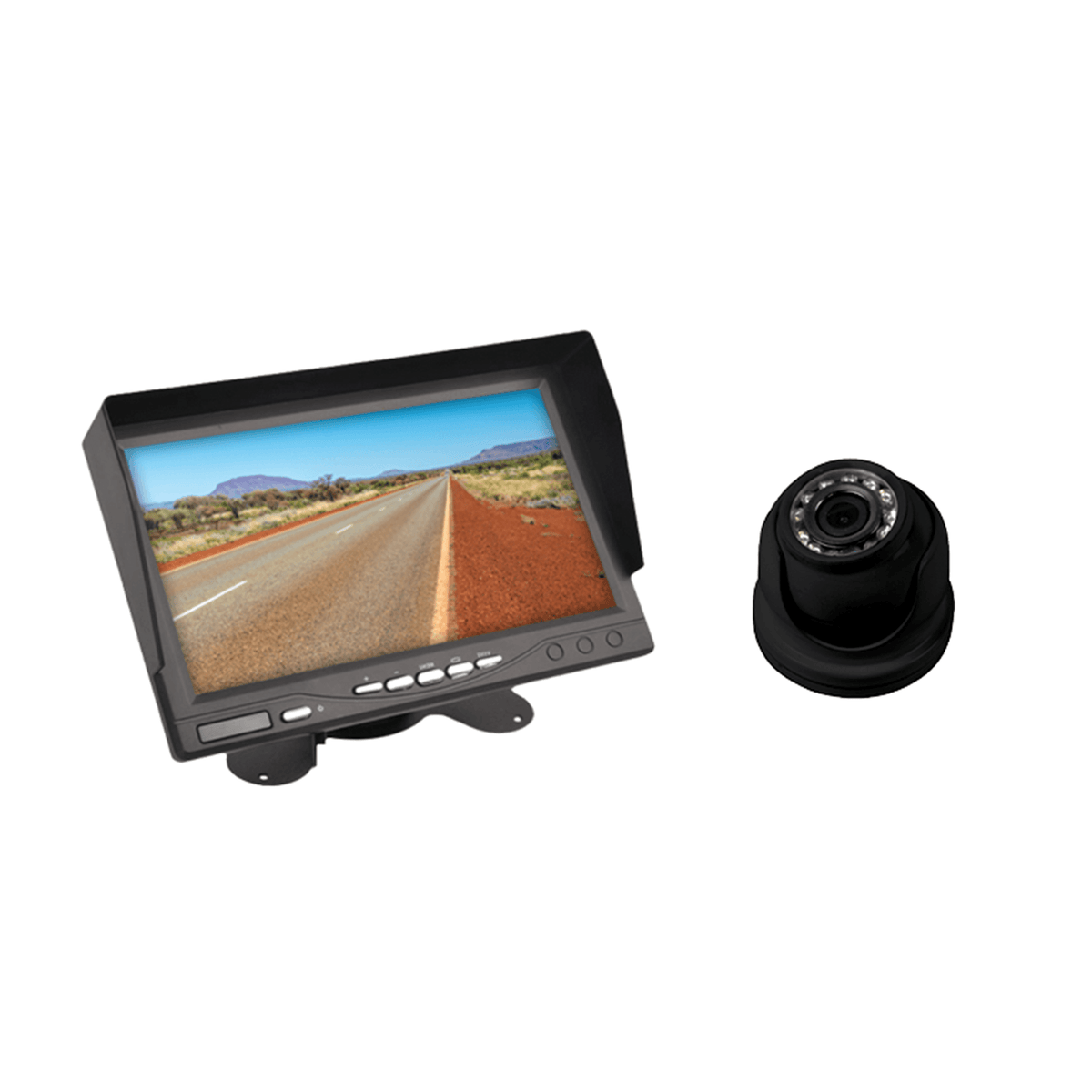

The Aussie Traveller Rear View Camera Kit as a must for your vehicle, so that you can get a clear picture what's behind you. The round eyeball style camera produces wide angle, high quality imagery for you to view on the 7 inch high resolution display monitor. This kit has all that is required for easy installation and mounting. It is exactly what you need for keeping a close eye on your 4x4, Caravan, RV, Camper Trailer or Motorhome.

Our Rear View Camera Kit is also available with a Square Camera.

Features:

  • Waterproof IP67 rating
  • 12V powered camera & LCD display monitor
  • 5m coiled cable for connection between the tow vehicle and the towed vehicle
  • Easy to install - Screen can be mounted onto front windscreen or dashboard via the supplied suction mount
  • Camera features extremely low current draw yet delivers excellent resolution
  • Uses standard 50Hz frequency with 120degree lens angle
  • Cables also allow for RV installation such as Campers and Motorhomes

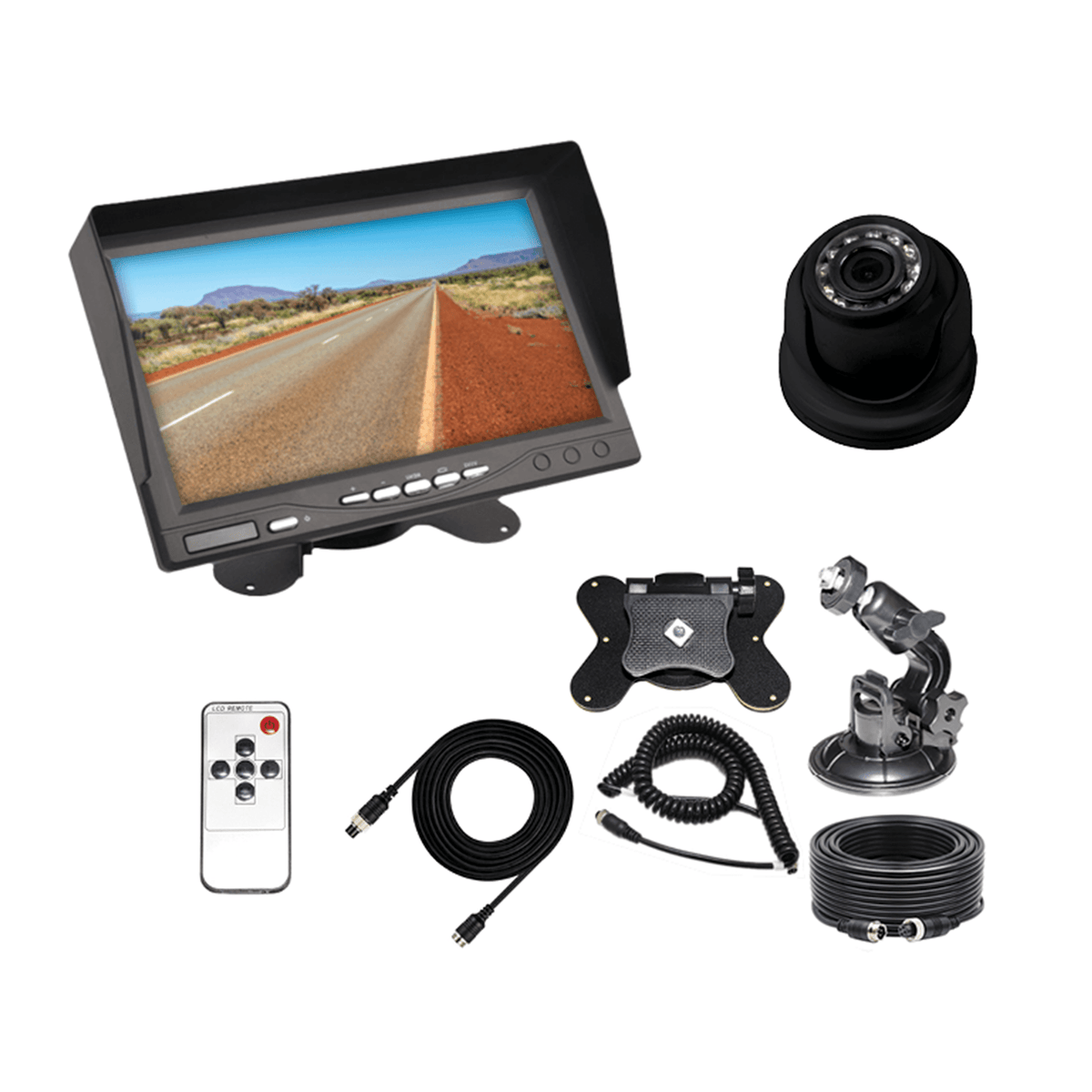

Includes:

  • 7” TFT LCD Monitor
  • Window mount and fixed mount monitor brackets
  • Remote control
  • 15m towed vehicle cable
  • 5m tow vehicle cable
  • 5m coiled cable
  • Installation manual

Specifications

TFT LCD Monitor

Screen Dimensions
7 Inch
Resolution
800 x 480 RGB
System
PAL & NTSC Auto Switch
Power
DC 12V
Consumption
3W
Video
Two Way Video Input
Rear View
Image Can Be Changed Left & Right
Operate Mode
Key Button & Remote Control
Size
180 x 120 x 50mm

Camera

System
PAL/NTSC
Effective Pixels
648 x 488 Pixels
Sensing Area
5.55um x 5.55um
Scanning System
2:1 Interlace
Sync System
Internal
Resolution
420 TV Lines
Horizontal Sync Frequency
15.625KHz / 15.73KHz
Vertical Sync Frequency
50Hz / 60Hz
Minimum Illumination
1.5lux/F1.2
Video Output
1.0VP-P.75Ohm
Gamma Consumption
0.45
AGC
Auto
S/N Ratio
Better Than 48dB
White Balance
Auto
Electronic Shutter
1/60-1/15,000 Seconds
BLC
Auto
Current Consumption
80mA
Power Supply
DC 12V
Operating Temperature
-10°C~46°C RH95% Max
Storage Temperature
-30°C~60°C RH95% Max
Lens
1.8mm F=2.0
Lens Angle
120°
Waterproof Grade
IP66
WARNING
Contains Button or Coin Cell Battery. Hazardous If Swallowed - See Instructions
